TECHNOLOGY OVERVIEW

Hermetic Press Machines

Hermetic Press or Rotary Press machines are used to produce products like Paving Blocks, Slabs, Terrazzo Tiles, Decorative grooved tiles, and a range of related products.

This process involves pouring the set mix face concrete into the mould first followed by the backing layer and hydraulically pressed under high pressure.

The product produced in this process has higher density, superior abrasive resistance, Better Tensile split strength and excellent finish.  Moreover, the surface finish after shot-blasting is unique and stands out compared to any other process of manufacture

PAVER BLOCK MACHINE

Fully Automatic Rotary Press

Parijatha Four Station Hermetic Press APM-416 ED is a Heavy duty Press with independent stations for each of the operations having a pressing force of 300 ton to produce high-density products. This machine can be fully automated from the face mix and backing layer dosing, ejection and handling of the finished products with minimum human intervention.

Also, Parijatha offers other semi-automatic models – two station and three station presses as per customer preferences.

PAVER BLOCK MACHINE

Semi-Automatic Paver Block Machines

Parijatha Three Station Rotary Press APM-316ED and Two stations APM 216 HD are semi-automatic Hermetic presses used to manufacture Terrazzo Tiles, High density Paving Blocks, Slabs, Decorative Grooved Tiles(Checkered Tiles), etc. This machine requires manual intervention for the pouring of the face mix and leveling of the backing layer

HERMETIC PRESS MACHINES

Comparision

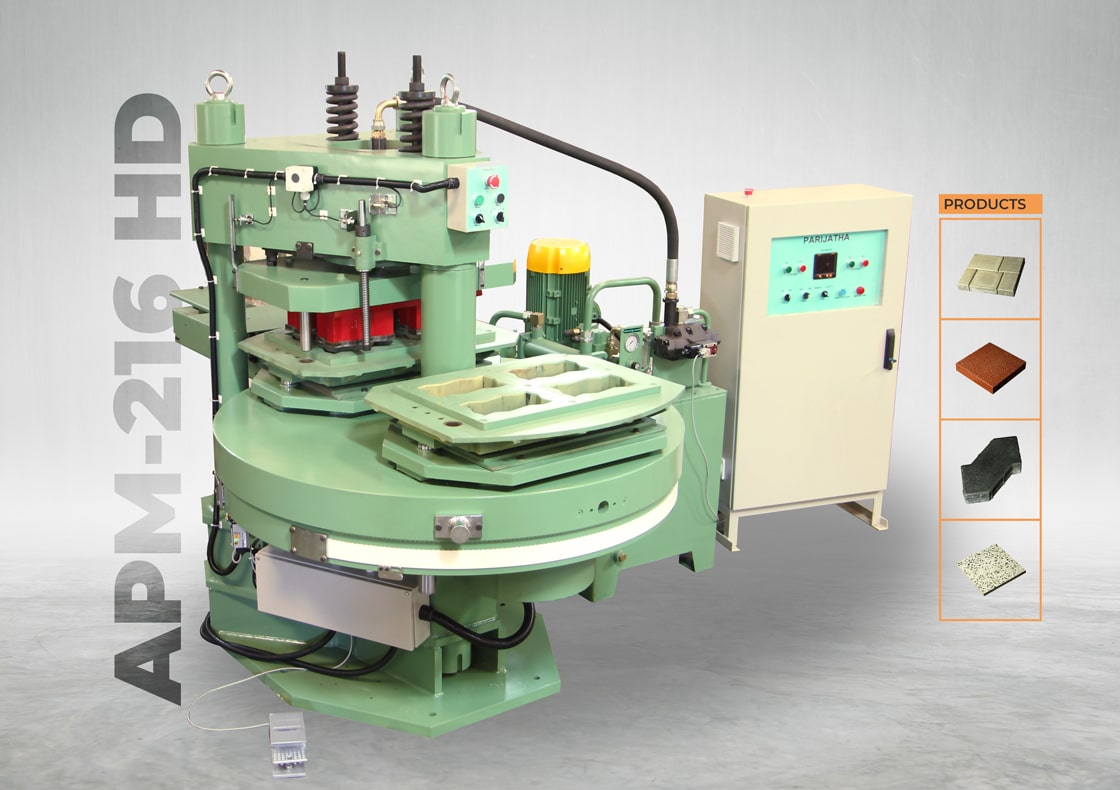

APM 216 HD

Paver Block Making Machine
  • Maxiumum Pallet Size
    400x500 mm
  • Production Capacity/8 hour shift
    150
  • Max Working Pressure
    120 Tons
  • Power Required
    16 HP

APM 316 ED

Paver Block Making Machine
  • Maxiumum Pallet Size
    700x600 mm
  • Production Capacity/8 hour shift
    250
  • Max Working Pressure
    200 Tons
  • Power Required
    30 HP

APM 416 ED

Paver Block Making Machine
  • Maxiumum Pallet Size
    600x700 mm
  • Production Capacity/8 hour shift
    250-350
  • Max Working Pressure
    300 Tons
  • Power Required
    35 HP
Popular
